Name: All in One Parallel Ready Energy Storage Battery System Outdoor Container With Lifepo4 Battery
Brand: 1stess
Price: 1 USD

Brand Name : 1stess

Model Number : EnerArk2.0-M

Certification : LVD

Place of Origin : China

MOQ : 1 piece

Price : negotiable

Supply Ability : 10 containers per month

Delivery Time : 45-60 days

Packaging Details : container

Operating Temperature : -20°C To 50°C

Certifications : IEC,UN,UL

Battery Type : LiFePO4

IP protection : IP55

Installation : Indoor Or Outdoor

Application : Industrial And Commerical

Warranty : 5 Years

Capacity : 107.52KWH-125.44KWH

Contact Now

Product Features:

Parameter table:

Model	EnerArk2.0-NBN-P50	EnerArk2.0-NBN-P100
DC side Parameters
Cell type	LFP-280Ah
Module model	IP20S
Battery capacity range	143.36kWh~215kWh	215kWh
AC On-Grid Side Parameters
Grid connection type	3P4W
Charging/discharging power	50kW	100kW
Rated grid voltage	AC 400V±15%
Frequency range	45Hz~55Hz
Rated AC output current	72A	144A
Power factor	0.8(Leading)~0.8(Lagging)
Harmonics	≤3%(at rated power)
AC off-grid side parameters
Load type	3P4W
Rated output power	50kW	100kW
Rated output yoltage	AC400V±1%
Rated output frequency	50Hz
Rated current	72A	144A
Frequency accuracy	0.2Hz
General Parameters
Dimensions (WHD)	1900mm2100mm1330mm
Packing size(WHD)	2100mm2244mm1500mm
Maximum weight	2500kg

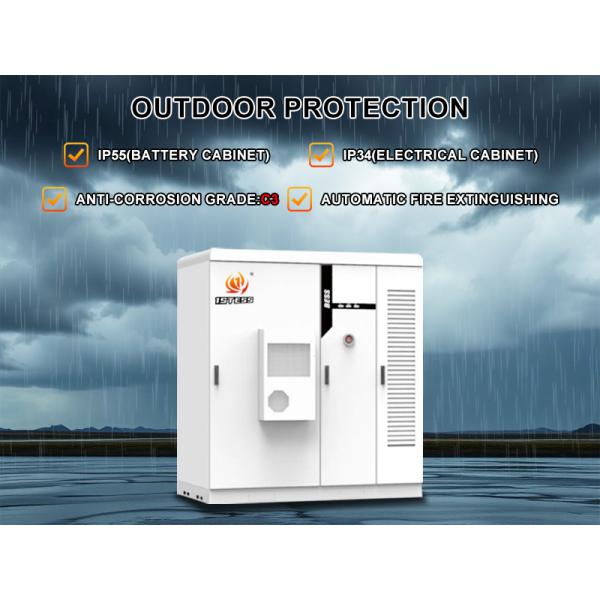

Degree of protection	IP55(Battery Cabinet)IP34(Electrical Cabinet)
Cooling method type	Battery Cabinet (air conditioner)&Electrical Cabinet (forced air cooling)
Fire fighting system	FM200 automatic fire extinguishing
Anti-corrosion grade	C3
Relative humidity	0-95%(non-condensing)
Operating temperature*	-20℃~50℃
Altitude**	<2000m
Noise level	≤75dB
Communication interface	RS485,Ethernet
Communication protocol	Modbus RTU,Modbus TCP/IP
Product standard warranty	5 years,6000 cycles(0.5C,95%DOD,EOL:70%)
PV Side Parameters (Optional)
Maximum PV input power	30kW/60kW/90kW/120kW
MPPT voltage range	200V-850V
Number of MPPTs	1/1/2/2
Number of PV inputs	1/1/2/2
Maximum input current	100A/200A/300A/400A
Certifications	CE(IEC61000,IEC62619,IEC62477),UN3480,UN38.3,MSDS Converter:UK G99,VDE4105,EN50549 Cell:IEC62619,UL1973,UL1642,UL9540A

Summary Table: Geographical & Climatic Installation Conditions:

Country/Region	Key Climatic/Geographical Factors	EnerArk-2.0 Suitability & Key Adaptations
Norway	Extreme cold, snow, coastal salt, low winter sun.	Operates to -20°C, IP55, C3 anti-corrosion, multi-energy input.
Spain	High heat, dry dust, intense solar radiation.	50°C limit, IP55 dust-tight, high PV input compatibility.
Germany	Moderate but variable, rainy, humid.	IP55/IP34, humidity resistant, VPP-ready for grid services.
