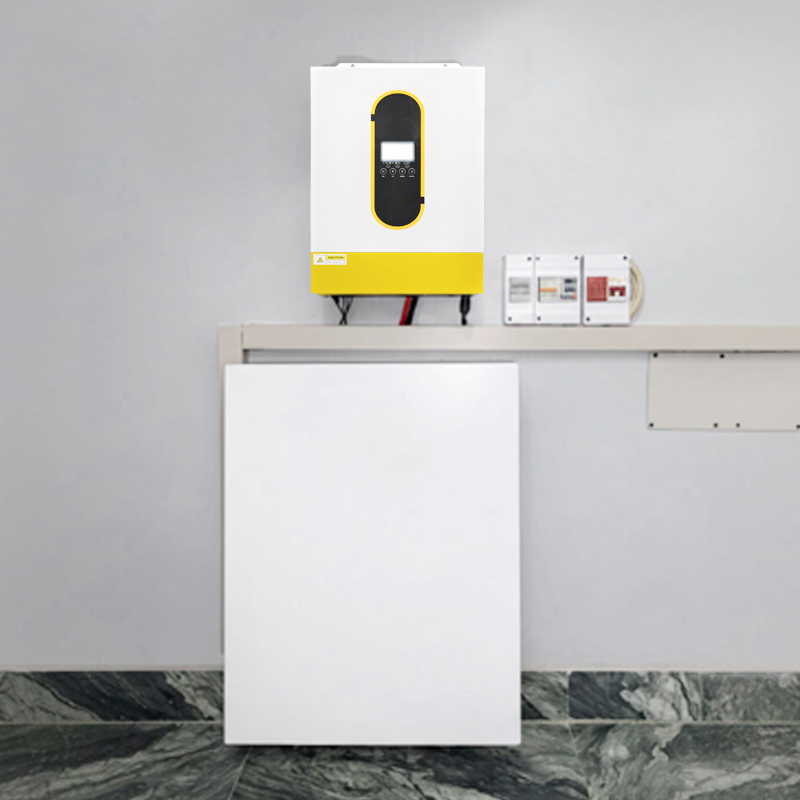

6500W PV Array 6200W Output 48V Single Phase High Voltage MPPT Pure Sine Wave Inverter for House Backup

Brand Name : 1stess

Model Number : EM-T (PV60-500VDC) 6200-48L

Certification : CE, IEC

Place of Origin : China

MOQ : 1 piece

Price : To be negotiated

Payment Terms : L/C,T/T

Supply Ability : 2000 pieces per month

Delivery Time : 30 days

Packaging Details : carton box

Charging Mode : MPPT

Operating Temperature : -10°C To 50°C

Inverter Type : Off Grid inverter

Frequency : 50Hz/60Hz

Output Voltage : 220VAC/230VAC

Communication Interface : RS232/RS485

Input Voltage : 230VAC

Size : 483*312*122mm

Waveform : Pure Sine wave

Output Current : 120A

Weight : 11kg

Contact Now

6500W PV Array 6200W Output 48V Single Phase High Voltage MPPT Pure Sine Wave Inverter
Advanced power inverter designed for house backup systems with smart load management and lithium battery compatibility.
Key Features
  • Dual output for smart load management
  • Lithium battery activation function by PV or utility power
  • Compatible with LiFePO4 batteries via RS485 communication
  • High PV input capacity up to 500V DC maximum
  • Built-in MPPT charge controller with 120A capacity
  • Capable of operating without battery connection
  • Detachable dust cover for harsh environment protection
  • Optional WiFi remote monitoring capability
  • Multiple output priority modes: UTL, SOL, SBU, SUB
  • Equalization function to optimize battery performance and extend lifecycle
Technical Specifications
MODEL EM6200-48L
INPUT
Nominal Voltage 230VAC
Acceptable Voltage Range 170-280VAC; 90-280VAC
Frequency 50/60 Hz (Auto sensing)
OUTPUT
Nominal Voltage 220/230VAC ±5%
Surge Power 12400VA
Frequency 50/60Hz
Waveform Pure Sine Wave
Transfer Time 10ms (For personal computer); 20ms (For home appliances)
Peak Efficiency 94%
Overload Protection 5s @ >=140% load; 10s @ 100%~140% load
6500W PV Array 6200W Output 48V Single Phase High Voltage MPPT Pure Sine Wave Inverter for House Backup 6500W PV Array 6200W Output 48V Single Phase High Voltage MPPT Pure Sine Wave Inverter for House Backup 6500W PV Array 6200W Output 48V Single Phase High Voltage MPPT Pure Sine Wave Inverter for House Backup 6500W PV Array 6200W Output 48V Single Phase High Voltage MPPT Pure Sine Wave Inverter for House Backup 6500W PV Array 6200W Output 48V Single Phase High Voltage MPPT Pure Sine Wave Inverter for House Backup 6500W PV Array 6200W Output 48V Single Phase High Voltage MPPT Pure Sine Wave Inverter for House Backup
Applications
This grid-tied hybrid solar inverter is a critical component in solar power systems that connects photovoltaic panels directly to the utility grid. It converts DC power from solar panels into AC power for household use or grid feedback.
System Capabilities
  • Grid Connection: Synchronizes with utility grid, matching output frequency and voltage to grid standards
  • Maximized Energy Harvesting: Utilizes MPPT technology to optimize energy extraction from solar panels
  • Net Metering: Enables credit for excess energy fed back into the grid, reducing electricity bills
  • Safety Features: Equipped with anti-islanding protection for safe operation during grid outages
  • Compact Design: Lightweight construction for easy installation in residential or commercial settings
  • Monitoring Capabilities: Track system performance and energy production through mobile apps or web interfaces
The hybrid solar inverter is suitable for homes, offices, and buildings requiring reliable power supply. It's ideal for remote areas without grid access, powering lighting, appliances, and other electrical devices.
