Single Phase Off Grid Solar Inverter 6.2kW 230V
High-performance 6200VA/6200W single-phase off-grid solar inverter with 500V PV input and lithium battery support. Ideal for residential and light commercial applications requiring reliable backup power and solar energy utilization.
Key Features
- High-power output: 6200VA/6200W pure sine wave output suitable for sensitive electronics
- Dual independent outputs: Separate circuits for computers (10ms transfer) and appliances (20ms transfer)
- Advanced MPPT charging: 60-500 VDC operating range with 120A solar charge capacity
- Lithium battery ready: Supports activation via PV or utility with RS485 BMS communication
- Wide voltage tolerance: 90-280 VAC input range for unstable grid conditions
- High efficiency: 94% peak efficiency for minimal energy loss
- Battery-free operation: Can function without battery using direct solar power
- Multiple output priorities: UTL, SOL, SBU, SUB modes for flexible energy management
Technical Specifications
| Model |
EM6200T-48L |
| Phase Configuration |
1-Phase In / 1-Phase Out |
| Rated Output Voltage |
220/230 VAC ±5% |
| Frequency |
50/60 Hz auto-sensing |
| Battery Voltage |
48 VDC |
| Max PV Input Power |
6500 W |
| Max PV Open-Circuit Voltage |
500 VDC |
| Max Solar Charge Current |
120 A |
| Max AC Charge Current |
80 A |
| Communication Ports |
RS485 (RJ45) / RS232 (DB9) |
| Operating Temperature |
-10°C to +50°C |
| Dimensions (D x W x H) |
438 x 312 x 122 mm |
Advanced Protection & Management
- Overload protection: Shutdown after 5s @ ≥140% load, or 10s @ 100-140% load
- Equalization function for optimized battery performance and extended lifecycle
- Detachable dust cover for harsh environmental protection

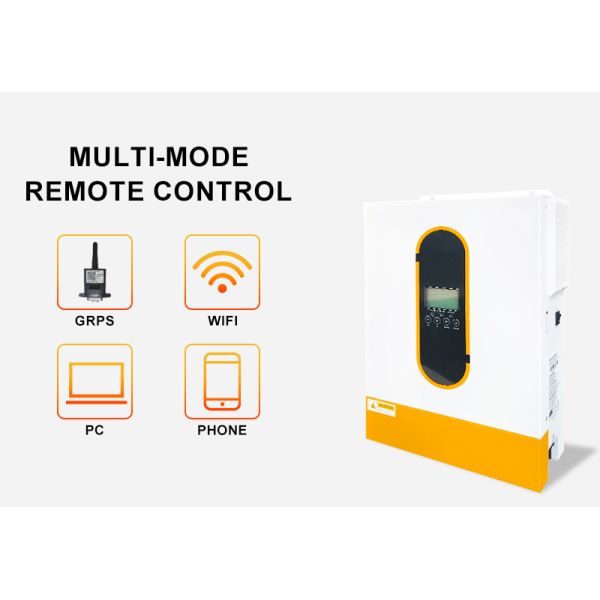

- Optional WiFi remote monitoring capability
Product Images
Regional Application Solutions
Philippines Applications
Is the EM6200T-48L suitable for areas with frequent typhoons and power outages?
Absolutely. Its 10ms transfer time ensures critical devices like computers and medical equipment experience near-uninterrupted power. The robust build and detachable dust cover offer extra protection against harsh, humid environments common during typhoon seasons.
Can I use this inverter with a generator during long-term brownouts?
Yes. The inverter seamlessly accepts AC input from generators within its voltage range (90-280VAC), making it an ideal backbone for a reliable home energy system during extended outages.
Is it compatible with popular lithium batteries available in the Philippines?
Yes, it features built-in RS485 communication for seamless compatibility with major brands of LiFePO4 batteries, allowing for intelligent battery management and extending battery life.
Vietnam Applications
The voltage in rural Vietnam can be unstable. Can this inverter handle it?
Yes. It accepts a very wide AC input voltage range (90-280VAC), specifically designed to handle the unstable grid voltage common in rural and industrial areas, protecting your appliances.
Can I use this for a small workshop or farm?
Certainly. The dual output feature allows for smart load management. You can prioritize essential workshop machinery on the main output and use the second output for less critical loads, optimizing your power usage.
How does the "Lithium Battery Activation by PV" feature help me?
If your lithium battery ever enters a protection mode (deeply discharged), you don't need grid power to reactivate it. Solar energy alone can wake it up, ensuring self-sufficiency.
Indonesia Applications
Is this inverter a good solution for my off-grid home in a remote Indonesian island?
Perfectly. It can run without a battery using only solar power and has a massive 120A solar charge controller, making it the heart of a reliable, independent power system for island living.
Can it withstand the hot and humid coastal environment?
Yes. Its anti-corrosion components and detachable dust cover protect against salty, humid air. The operating temperature range of -10°C to 50°C is more than sufficient for the Indonesian climate.
What happens during a grid blackout?
The inverter will switch to solar and battery power in just 10ms (for sensitive electronics), keeping your home powered without interruption.
